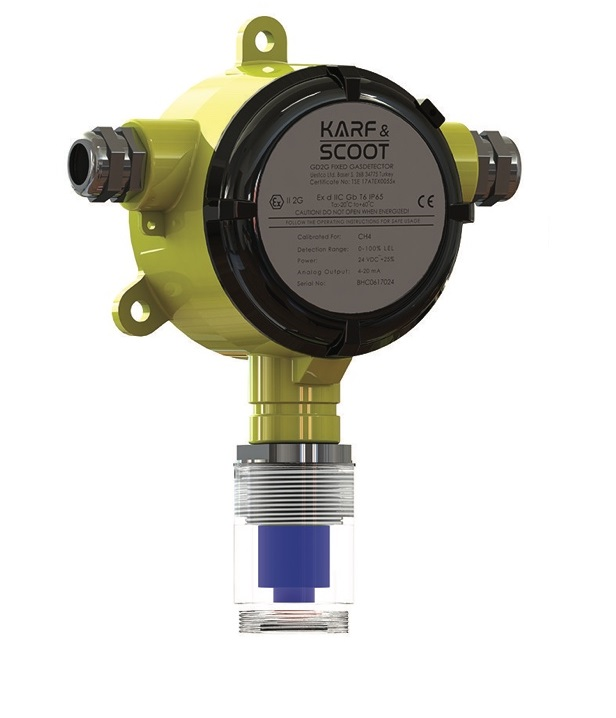

Karf&Scoot Elektro Kimyasal Sensörlü Exproof Gaz Dedektörü (gaz transmitteri)

Teknik Özellikler

Operating Voltage 24 V ±%25VDC
Detection Range Check the table below
Response Time Check the table below
Resolution %2 of detection range
Expected Life-Time* >2 years
Analog Output 4~20 mA
Digital Output 2 relays (NC and NO) output
Material Aluminum
Environmental Conditions Temperature: -20/+60 ̊C,
Pressure: 86-106 kPa,
Humidity: ≤95 %RH
IP Protection Level IP65
ATEX Classification II 2G Ex d IIC Gb T6

Modeller

Order Code Gas Formula Detection range/ Response Time
B30EAA521000P Carbon Monoxide CO 0 – 1000 ppm,
T90 < 30 s
B31EAA520100P Hydrogen Sulfide H2S 0 – 100 ppm,
T90 < 30 s
B31EAA520200P Hydrogen Sulfide H2S 0 – 200 ppm,
T90 < 30 s
B31EAA520500P Hydrogen Sulfide H2S 0 – 500 ppm,
T90 < 30 s
B32EAA520010P Formaldehyde CH2O 0 – 10 ppm,
T90 < 120 s
B33EAA520030P Nitrogen Dioxide NO2 0 – 30 ppm,
T90 < 30 s
B34EAA520100P Ammonia NH3 0 – 100 ppm,
T90 < 90 s
B34EAA521000P Ammonia NH3 0 – 1000 ppm,
T90 <120 s,
B34EAA525000P Ammonia NH3 0 – 5000 ppm,
T90 < 30 s
B35EAA520010P Chlorine CL2 0 – 10 ppm,
T90 < 40 s
B36EAA520250P Nitrogen Monoxide
(Nitrogen Oxide) 		NO 0 T90 < 40 s – 250 ppm,
B37EAA520020P Sulfur Dioxide SO2 0 – 20 ppm,
T90 < 25 s
B38EAA520025C Oxygen O2 0 – 25 % volume,
T90 < 15 s
