DWYER RHP SERİSİ Sıcaklık ve Nem transmitterleri

DWYER RHP SERİSİ Sıcaklık ve Nem transmitterleri, voltaj veya akım nem verici çıkışını bir pasif sıcaklık termistörü veya RTD çıkışı ile birleştirir. Polimer kapasiteli nem sensörlerine sahip modeller% 2,% 3 veya% 5 hassasiyetle mevcuttur. Kanal tipi duvar tipi ,isteğe bağlı olarak iki satırlı alfa sayısal LCD ekranla birlikte sunulmaktadır.

Dirençli termistörler veya RTD çıkışlı modeller için lütfen sıcaklık ve direnç arama tabloları için burayı tıklayın .

Uygulama notu:

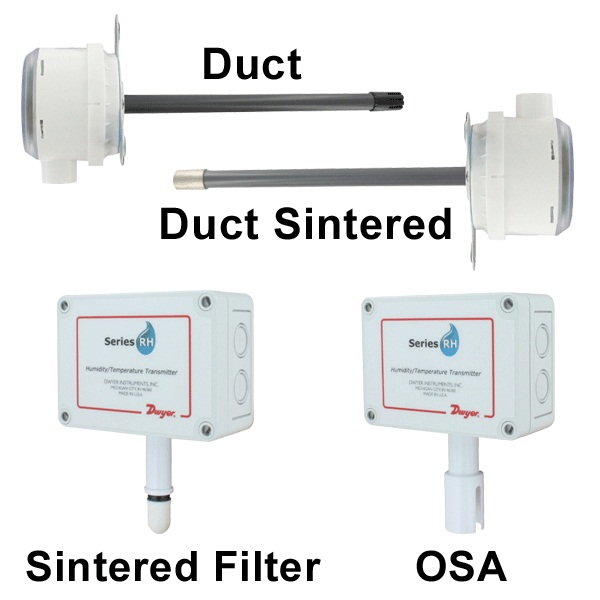

Kanal montajlı tesisatlar için, sinterlenmiş filtre seçeneği, nem sensörünün, fan ve soğutma bobinlerinden sonra besleme hava kanalına monte edildiği uygulamalar için sipariş edilmelidir.

Uygulamalar;

HVAC

Dış sıcaklık ve bağıl nem referansı

Havuz odası nem izleme

Özellikler

Bağıl Nem Aralığı:   0 ila% 100 RH.

Sıcaklık aralığı:   -40 ila 140 ° F (-40 ila 60 ° C).

Doğruluk, Sağlam:  RHP-2XXX ±% 2 25 ° C'de% 10 ila% 90 RH; RHP-3XXX ±% 3 25 ° C'de% 20 ila 80 RH; RHP-5XXX 25 ° C'de ±% 5 20 ila% 80 RH.

Doğruluk, Termistör Sıcaklık Sensörü:  ± 0.2 ° C @ 25 ° C'de (± 0.36 ° F @ 77 ° F).

Doğruluk, RTD Sıcaklık Sensörü:  DIN Sınıf B; ± 0,3 ° C @ 0 ° C'de (± 0,54 ° F @ 32 ° F).

Doğruluk, Katı Hal Band Aralığı:  ± 0,9 ° F @ 77 ° F (± 0,3 ° C @ 25 ° C).

Histerezis:    ±% 1.

Tekrarlanabilirlik:   ±% 0.1 normalde.

Sıcaklık Sınırları:  -40 ila 140 ° F (-40 ila 60 ° C).

Depolama sıcaklığı:  -40 ila 80 ° C arası -40 ila 176 ° F.

Düzeltilmiş Sıcaklık Aralığı:  -4 ila 140 ° F (-20 ila 60 ° C).

4 ila 20 mA Döngü Güçlü Modeller:  Güç gereksinimleri: 10 ila 35 VDC; Çıkış sinyali:
4 ila 20 mA.
0-5 / 10 V Çıkış Modelleri:
Güç gereksinimleri: 15 ila 35 VDC veya 15 ila 29 VAC; Çıkış sinyali: 0 ila 10 V @ 5 mA maks.

Katı Hal Band Gap Temp Sensörü Çıkış Aralıkları:  Anahtar seçilebilir, -20 ila 140 ° F (-28.9 ila 60 ° C); 0 ila 100 ° F (-17.8 ila 37.8 ° C); 40 ila 90 ° F (4.4 ila 32.3 ° C); -4 ila 140 ° F (-20 ila 60 ° C).

Tepki Süresi:  15 saniye.

Elektrik bağlantıları:   Çıkarılabilir vidalı terminal bloğu.

Boru Bağlantısı:  Kanal Dağı: 1/2 "NPS; OSA: 1/2" (22.3 mm).

Sürüklenme:  <% 1 RH / yıl.

RH Sensör:   Kapasitif polimer.

Sıcaklık sensörü:  > Tip 1, 2, 3: Katı hal bant aralığı;
Eğriler A, B, C; Termistör;   Eğriler D, E; Platin RTD DIN 385.
(Bkz. RT Arama Tablosu) .

Muhafaza:  Kanal Dağı: PBT; OSA: Polikarbonat.

Muhafaza Değerlendirmesi:  Yalnızca OSA montajı için NEMA 4X (IP66).

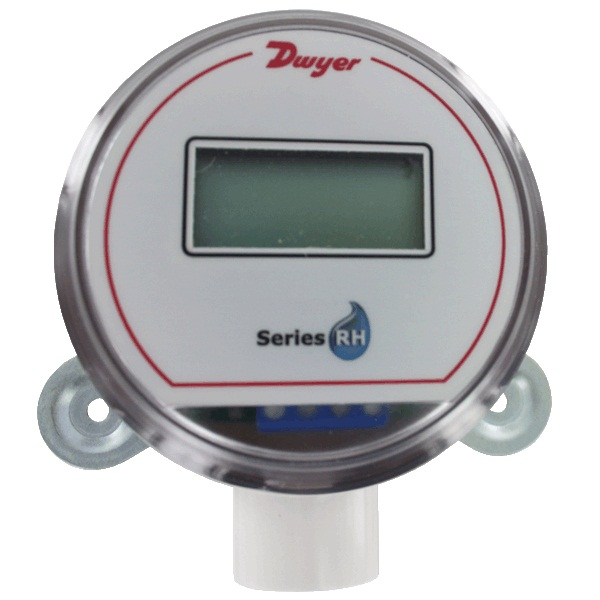

Gösterge:  Sadece Kanal Dağı, isteğe bağlı 2 satır alfa nümerik, 8 karakter / satır.

Ekran çözünürlüğü:   RH:% 0.1; 0,1 ° C (0.1 ° C).

Ağırlık:  Kanal Dağı: 0.616 lb (.3 kg) OSA: 1 lb (.45 kg).

Ajans Onayları:    CE.



ModelDescription
RHP-2D10Duct mount 2% RH transmitter with 4-20 mA RH output.
RHP-2D11Duct mount 2% RH/temperature transmitter with 4-20 mA RH output and 4-20 mA temperature output.
RHP-2D11-LCDDuct mount 2% RH/temperature transmitter, 4-20 mA RH output and 4-20 mA temperature output, with LCD.
RHP-2D1ADuct mount 2% RH/temperature transmitter with 4-20 mA RH output and 10K Curve A passive temperature output.
RHP-2D1BDuct mount 2% RH/temperature transmitter with 4-20 mA RH output and 10K @ 25°C thermistor temperature output.
RHP-2D1DDuct mount 2% RH/temperature transmitter with 4-20 mA RH output and 100 Ohm RTD Curve D passive temperature output.
RHP-2D1EDuct mount 2% RH/temperature transmitter with 4-20 mA RH output and 1K Ohm RTD DIN 385 temperature output.
RHP-2D1FDuct mount 2% RH/temperature transmitter with 4-20 mA RH output and 20K NTC thermistor temperature output.
RHP-2D20Duct mount 2% RH transmitter with 0-10 VDC RH output.
RHP-2D22Duct mount 2% RH/temperature transmitter with 0-10 VDC RH output and 0-10 VDC temperature output.
RHP-2D22-LCDDuct mount 2% RH/temperature transmitter, 0-10 VDC RH output and 0-10 VDC temperature output, with LCD.
RHP-2D2ADuct mount 2% RH/temperature transmitter with 0-10 VDC RH output and 10K Curve A passive temperature output.
RHP-2D2BDuct mount 2% RH/temperature transmitter with 0-10 VDC RH output and 10K @ 25°C thermistor temperature output.
RHP-2D2DDuct mount 2% RH/temperature transmitter with 0-10 VDC RH output and 100 Ohm RTD Curve D passive temperature output.
RHP-2D2EDuct mount 2% RH/temperature transmitter with 0-10 VDC RH output and 1K Ohm RTD DIN 385 temperature output.
RHP-2D2FDuct mount 2% RH/temperature transmitter with 0-10 VDC RH output and 20K NTC thermistor temperature output.
RHP-2F11Sintered filter duct mount humidity/temperature transmitter with 2% sensor, 4 to 20 mA output for humidity and temperature.
RHP-2F22Sintered filter duct mount humidity/temperature transmitter with 2% sensor, 0 to 10 V output for humidity and temperature.
RHP-2O10OSA 2% RH transmitter with 4-20 mA RH output.
RHP-2O11OSA 2% RH/temperature transmitter with 4-20 mA RH output and 4-20 mA temperature output.
RHP-2O1AOSA mount 2% RH/temperature transmitter with 4-20 mA RH output and 10K type III NTC thermistor temperature output.
RHP-2O1BOSA mount 2% RH/temperature transmitter with 4-20 mA RH output and 10K type II NTC thermistor temperature output.
RHP-2O1DOSA mount 2% RH/temperature transmitter with 4-20 mA RH output and Pt100 RTD temperature output.
RHP-2O1EOSA mount 2% RH/temperature transmitter with 4-20 mA RH output and Pt1000 RTD temperature output.
RHP-2O1FOSA mount 2% RH/temperature transmitter with 4-20 mA RH output and 20K NTC thermistor temperature output.
RHP-2O20OSA 2% RH transmitter with 0-10 VDC RH output.
RHP-2O22OSA mount 2% RH/temperature transmitter with 0-10 VDC RH output and 0-10 VDC temperature output.
RHP-2O2AOSA mount 2% RH/temperature transmitter with 0-10 VDC RH output and 10K type III NTC thermistor temperature output.
RHP-2O2BOSA mount 2% RH/temperature transmitter with 0-10 VDC RH output and 10K type II NTC thermistor temperature output.
RHP-2O2DOSA mount 2% RH/temperature transmitter with 0-10 VDC RH output and Pt100 RTD temperature output.
RHP-2O2EOSA mount 2% RH/temperature transmitter with 0-10 VDC RH output and Pt1000 RTD temperature output.
RHP-2O2FOSA mount 2% RH/temperature transmitter with 0-10 VDC RH output and 20K NTC thermistor temperature output.
RHP-2R11OSA humidity/temperature transmitter with 2% sensor, 4 to 20 mA humidity/temperature output with radiation shield.
RHP-2R1BOSA humidity/temperature transmitter with 2% sensor, 4 to 20 mA humidity output, 10K type II thermistor temperature output with radiation shield.
RHP-2S11Sintered filter OSA humidity/temperature transmitter with 2% sensor, 4 to 20 mA humidity/temperature output.
RHP-2S1BSintered filter OSA humidity/temperature transmitter with 2% sensor, 4 to 20 mA humidity output, 10K type II NTC thermistor temperature output.
RHP-3D10Duct mount 3% RH transmitter with 4-20 mA RH output.
RHP-3D11Duct mount 3% RH/temperature transmitter with 4-20 mA RH output and 4-20 mA temperature output.
RHP-3D11-LCDDuct mount 3% RH/temperature transmitter, 4-20 mA RH output and 4-20 mA temperature output, with LCD.
RHP-3D1ADuct mount 3% RH/temperature transmitter with 4-20 mA RH output and 10K @ 25°C thermistor temperature output.
RHP-3D1BDuct mount 3% RH/temperature transmitter with 4-20 mA RH output and 10K @ 25°C thermistor temperature output.
RHP-3D1DDuct mount 3% RH/temperature transmitter with 4-20 mA RH output and 100 Ohm RTD DIN 385 temperature output.
RHP-3D1EDuct mount 3% RH/temperature transmitter with 4-20 mA RH output and 1K Ohm RTD DIN 385 temperature output.
RHP-3D1FDuct mount 3% RH/temperature transmitter with 4-20 mA RH output and 20K NTC thermistor temperature output.
RHP-3D20Duct mount 3% RH transmitter with 0-10 VDC RH output.
RHP-3D22Duct mount 3% RH/temperature transmitter with 0-10 VDC RH output and 0-10 VDC temperature output.
RHP-3D22-LCDDuct mount 3% RH/temperature transmitter, 0-10 VDC RH output and 0-10 VDC temperature output, with LCD.
RHP-3D2ADuct mount 3% RH/temperature transmitter with 0-10 VDC RH output and 10K @ 25°C thermistor temperature output.
RHP-3D2BDuct mount 3% RH/temperature transmitter with 0-10 VDC RH output and 10K @ 25°C thermistor temperature output.
RHP-3D2DDuct mount 3% RH/temperature transmitter with 0-10 VDC RH output and 100 Ohm RTD DIN 385 temperature output.
RHP-3D2EDuct mount 3% RH/temperature transmitter with 0-10 VDC RH output and 1K Ohm RTD DIN 385 temperature output.
RHP-3D2FDuct mount 3% RH/temperature transmitter with 0-10 VDC RH output and 20K NTC thermistor temperature output.
RHP-3D3EDuct humidity/temperature transmitter with 3% sensor, 0 to 5 V humidity output, Pt1000 RTD temperature output.
RHP-3F10Sintered filter duct mount humidity transmitter with 3% sensor, 4 to 20 mA humidity output.
RHP-3F11Sintered filter duct mount humidity/temperature transmitter with 3% sensor, 4 to 20mA humidity/temperature output.
RHP-3F1ASintered filter duct mount humidity/temperature transmitter with 3% sensor, 4 to 20 mA humidity output, 20K thermistor temperature output.
RHP-3F1BSintered filter duct mount humidity/temperature transmitter with 3% sensor, 4 to 20 mA humidity output, 10K type II NTC thermistor temperature output.
RHP-3F20Sintered filter duct mount humidity transmitter with 3% sensor, 0 to 10 VDC humidity output.
RHP-3F22Sintered filter duct mount humidity/temperature transmitter with 3% sensor, 0 to 10 VDC humidity/temperature output.
RHP-3O10OSA 3% RH transmitter with 4-20 mA RH output.
RHP-3O11OSA 3% RH/temperature transmitter with 4-20 mA RH output and 4-20 mA temperature output.
RHP-3O1AOSA mount 3% RH/temperature transmitter with 4-20 mA RH output and 10K type III NTC thermistor temperature output.
RHP-3O1BOSA mount 3% RH/temperature transmitter with 4-20 mA RH output and 10K type II NTC thermistor temperature output.
RHP-3O1DOSA mount 3% RH/temperature transmitter with 4-20 mA RH output and Pt100 RTD temperature output.
RHP-3O1EOSA mount 3% RH/temperature transmitter with 4-20 mA RH output and Pt1000 RTD temperature output.
RHP-3O1FOSA mount 3% RH/temperature transmitter with 4-20 mA RH output and 20K NTC thermistor temperature output.
RHP-3O20OSA 3% RH transmitter with 0-10 VDC RH output.
RHP-3O22OSA mount 3% RH/temperature transmitter with 0-10 VDC RH output and 0-10 VDC temperature output.
RHP-3O2AOSA mount 3% RH/temperature transmitter with 0-10 VDC RH output and 10K type III NTC thermistor temperature output.
RHP-3O2BOSA mount 3% RH/temperature transmitter with 0-10 VDC RH output and 10K type II NTC thermistor temperature output.
RHP-3O2EOSA mount 3% RH/temperature transmitter with 0-10 VDC RH output and Pt1000 RTD temperature output.
RHP-3O2FOSA mount 3% RH/temperature transmitter with 0-10 VDC RH output and 20K NTC thermistor temperature output.
RHP-3R11OSA humidity/temperature transmitter with 3% sensor, 4 to 20 mA humidity/temperature output with radiation shield.
RHP-3S11Sintered filter OSA humidity/temperature transmitter with 3% sensor, 4 to 20 mA humidity/temperature output.
RHP-3S1ASintered filter OSA humidity/temperature transmitter with 3% sensor, 4 to 20 mA humidity output, 10K type III NTC thermistor temperature output.
RHP-3S1BSintered filter OSA humidity/temperature transmitter with 3% sensor, 4 to 20 mA humidity output, 10K type II NTC thermistor temperature output.
RHP-3S22Sintered filter OSA humidity/temperature transmitter with 3% sensor, 0 to 10 VDC humidity/temperature output.
RHP-3S2ASintered filter OSA humidity/temperature transmitter with 3% sensor, 0 to 10 VDC humidity output, 10K type III NTC thermistor temperature output.
RHP-3S2BSintered filter OSA humidity/temperature transmitter with 3% sensor, 0 to 10 VDC humidity output, 10K type II NTC thermistor temperature output.
RHPS-D2AReplacement 2% RH sensor with 10K Ohm Curve A sensor.
RHPS-D2BReplacement 2% RH sensor with 10K Ohm Curve B sensor.
RHPS-D2CReplacement 2% RH sensor with 3K Ohm Curve C sensor.
RHPS-D2DReplacement 2% RH sensor with 100 Ohm RTD DIN 385 sensor.
RHPS-D2EReplacement 2% RH sensor with 1K Ohm RTD DIN 385 sensor.
RHPS-D3AReplacement 3% RH sensor with 10K Ohm Curve A sensor.
RHPS-D3BReplacement 3% RH sensor with 10K Ohm Curve B sensor.
RHPS-D3CReplacement 3% RH sensor with 3K Ohm Curve C sensor.
RHPS-D3DReplacement 3% RH sensor with 100 Ohm RTD DIN 385 sensor.
RHPS-D3EReplacement 3% RH sensor with 1K Ohm RTD DIN 385 sensor.
RHPS-S2AReplacement 2% RH sensor with 10K Ohm Curve A sensor.
RHPS-S2BReplacement 2% RH sensor with 10K Ohm Curve B sensor.
RHPS-S2CReplacement 2% RH sensor with 3K Ohm Curve C sensor.
RHPS-S2DReplacement 2% RH sensor with 100 Ohm RTD DIN 385 sensor.
RHPS-S2EReplacement 2% RH sensor with 1K Ohm RTD DIN 385 sensor.
RHPS-S3AReplacement 3% RH sensor with 10K Ohm Curve A sensor.
RHPS-S3BReplacement 3% RH sensor with 10K Ohm Curve B sensor.
RHPS-S3CReplacement 3% RH sensor with 3K Ohm Curve C sensor.
RHPS-S3DReplacement 3% RH sensor with 100 Ohm RTD DIN 385 sensor.
RHPS-S3EReplacement 3% RH sensor with 1K Ohm RTD DIN 385 sensor.
